Power Supply Module in MicroPC format |
|
Power Supply Module in MicroPC format

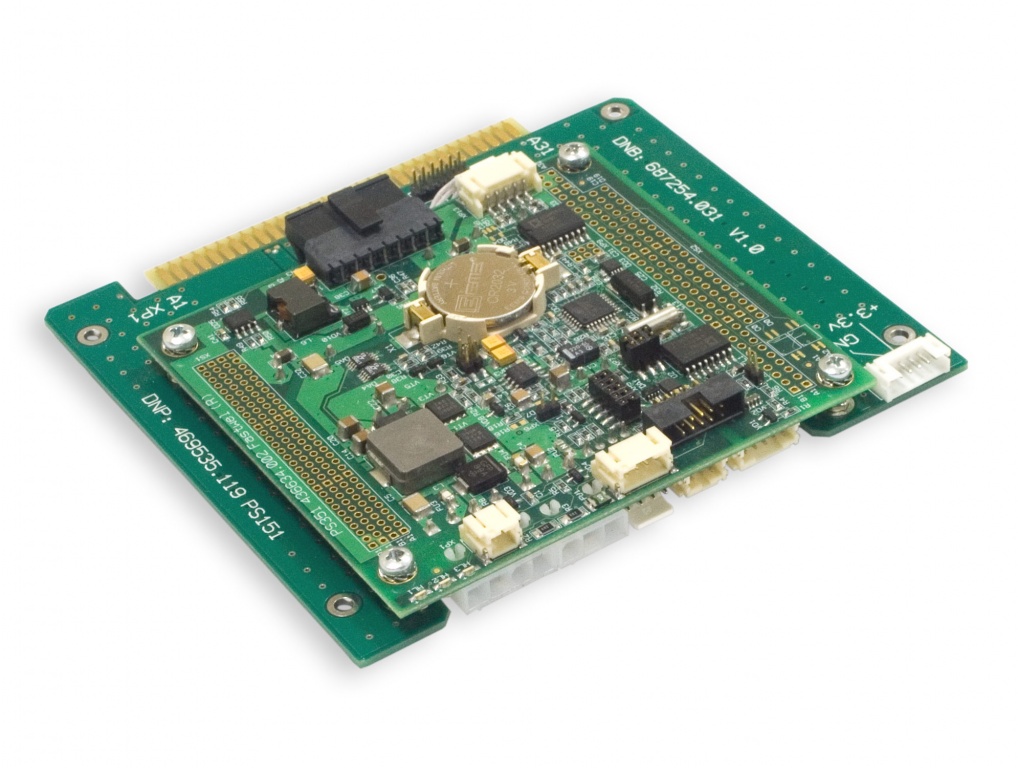

PS151
• MicroPC form_factor
• Input voltage: 10,5 _ 36 V
• Protection against surge overvoltages at input of the primary power supply
• Consumption current in switched_on condition: 5 mA
• Galvanic isolation at input/output: 1000 V
• Protection against overloads and overheating
• Operating temperature range of voltage converters: from –40°С to +85°С
• Operating temperature range of control system: from –50°С to +85°С
• Vibration/Single shocks/ Multiple shocks resistance: 5 g/ 100 g/ 50g
• Input voltage: 10,5 _ 36 V
• Protection against surge overvoltages at input of the primary power supply
• Consumption current in switched_on condition: 5 mA
• Galvanic isolation at input/output: 1000 V
• Protection against overloads and overheating
• Operating temperature range of voltage converters: from –40°С to +85°С
• Operating temperature range of control system: from –50°С to +85°С
• Vibration/Single shocks/ Multiple shocks resistance: 5 g/ 100 g/ 50g
Overview
Downloads
Order Info
Sales & technical support
PS151 power supply module is implemented in MicroPC format in is optimized for the use as a part of the devices, intended for operation in:
- non-maintained systems in hard to get areas;
- systems self-powered from natural energy sources;
- battery supplied systems installed in vehicles;
- systems, operated under extreme climatic conditions.
The intelligent power supply control system fulfills the following functions:
- Control of watchdog timer, which switches off system power supply in case of system hanging;
- Monitoring of ambient temperature and control of heater and fan channels within the programmed temperature ranges, from - 50С;
- Maintaining of a system event log with a reference to time and date;
- Automatic transition to a redundant power supply channel;
- Switching on/switching off the system according to schedule;
- "Protection" function of the switched-off system.
- non-maintained systems in hard to get areas;
- systems self-powered from natural energy sources;
- battery supplied systems installed in vehicles;
- systems, operated under extreme climatic conditions.
The intelligent power supply control system fulfills the following functions:
- Control of watchdog timer, which switches off system power supply in case of system hanging;
- Monitoring of ambient temperature and control of heater and fan channels within the programmed temperature ranges, from - 50С;
- Maintaining of a system event log with a reference to time and date;
- Automatic transition to a redundant power supply channel;
- Switching on/switching off the system according to schedule;
- "Protection" function of the switched-off system.
Datasheet
(PDF 0.38 MB)
| PS151 - 01 |
PS151 Power Supply Module: 5 V / 30 W, 12 V / 20 W, 3,3 V / 5 W. Conformal coating is provided (option \coated) |
