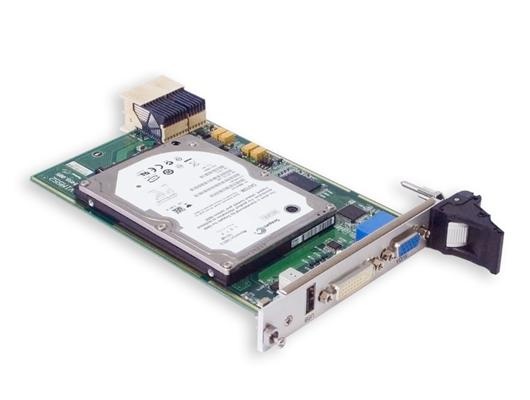

VIM552 is a graphics processor module designed for use in systems based on CPC506 processor module conforming to CompactPCI® PlusIO specification or in systems compliant to CompactPCI® Serial specification. The module has two independent outputs with DVI-I and VGA interfaces; they can be used together with integrated graphics subsystem of the processor module.

VIM552 is based on Silicon Motion SM750 graphics controller having low power consumption; this allows to manage with passive cooling and using the module as a 2.5” SATA disk carrier.

There is USB connector on the front panel; this enables connection of touch screen displays. The second USB interface (optional) is routed to DVI connector to the lines not used in single-link mode. This allows to deliver USB directly to the target device via a dual-link DVI cable.
