MicroPC Vortex86DX™ 600 MHz CPU Module CPC152 |
|

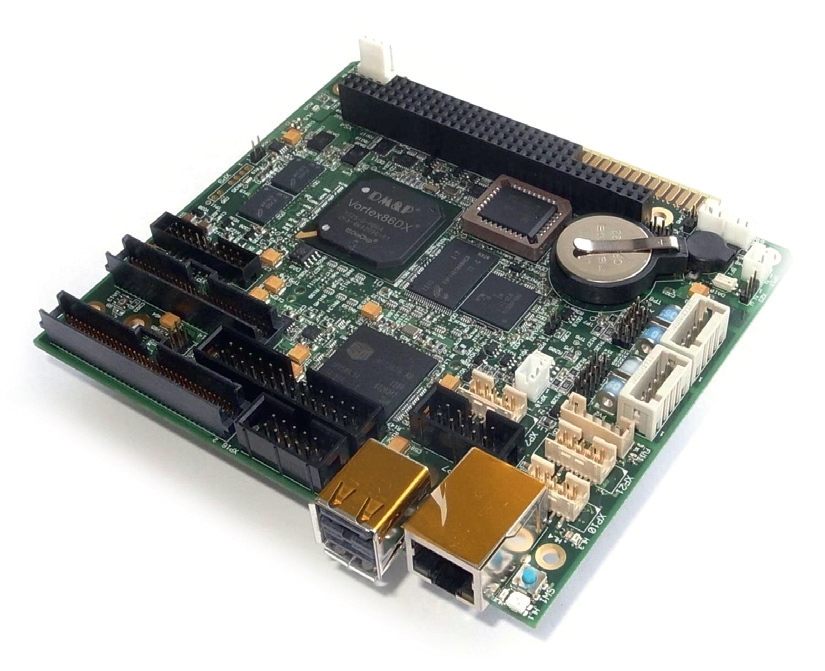

MicroPC Vortex86DX™ 600 MHz CPU Module CPC152
CPC152
• Vortex86DX™ 600 MHz CPU
• DDR2 SDRAM 256 MB
• 2 GB NAND Flash (SLC)
• Serial ports: COM1, COM2 with the rate of exchange up to 750 KB/s via RS-422/485; COM3, COM4: RS-232 (9-wire), exchange rate up to 250 KB/s via RS-232
• PS/2 port
• Operating temperature range: –40°C to + 85°C
• OS: MS-DOS 6.22, FreeDOS, Linux 2.6, QNX 4.25, QNX 6.5x,
• Windows CE 5.0, Windows XP Embedded
• RTC with integrated lithium battery 3 V
• Shock/vibration resistance: 50g/5g
• MTBF: 160 000 hours
• DDR2 SDRAM 256 MB
• 2 GB NAND Flash (SLC)
• Serial ports: COM1, COM2 with the rate of exchange up to 750 KB/s via RS-422/485; COM3, COM4: RS-232 (9-wire), exchange rate up to 250 KB/s via RS-232
• PS/2 port
• Operating temperature range: –40°C to + 85°C
• OS: MS-DOS 6.22, FreeDOS, Linux 2.6, QNX 4.25, QNX 6.5x,
• Windows CE 5.0, Windows XP Embedded
• RTC with integrated lithium battery 3 V
• Shock/vibration resistance: 50g/5g
• MTBF: 160 000 hours
Overview
Downloads
Order Info
Sales & technical support
СРС152 module based on Vortex86DX 600 MHz CPU in MicroPC format is designed for Industrial Control System applications, including "simple" replacement of the Octagon Systems computers withdrawn from production
Datasheet
(PDF 0.86 MB)
CPС152-v1.04manual.pdf
(PDF 2.4 MB)
| CPC152 -01 |
CPC152 CPU Module (MicroPC), Vortex86DX 600 MHz, 256 MB DDR2 SDRAM, GPU SM718 (16 MB DDR), 2 GB FFD, NV SRAM 128 KB, Compact Flash socket, 4×USB 2.0, Ethernet 10/100 Mbps, 2×RS232, 2×RS422/485 (isolated, with lightning protection); acceleration, pressure |
