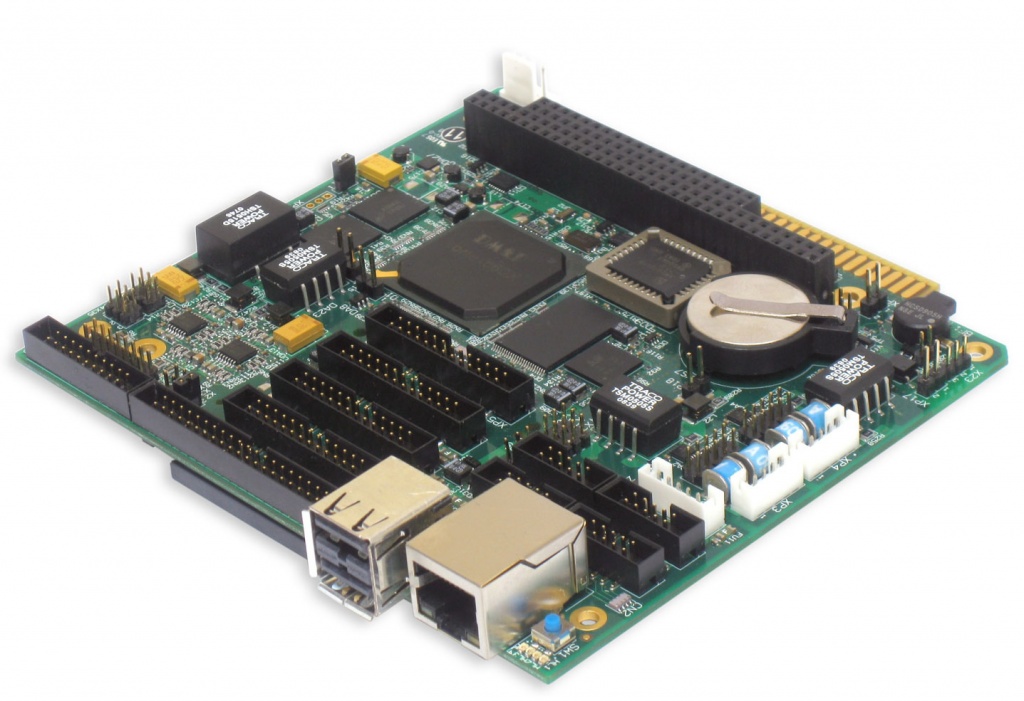

MicroPC CPU Module with Data Acquisition System CPC109
CPC109
• 256 MB DDR II SDRAM soldered
• Fast Ethernet port
• CF I/II socket, 1 GB SLC NAND Flash soldered
• Four USB 2.0
• Digital I/O port: 72 CMOS/TTL lines
• 8/2 isolated analog I/O, 12 bit ADC/DAC
• Two RS-232, two RS-422/485 isolated
• Operating temperature range: - 40C...+85C
Overview
Downloads
Order Info
Sales & technical support
systems, in industrial automation, in data acquisition and processing.
The module can operate as a standalone or a slave device. Connection of basic input-output devices, such as VGA monitors, LCD panels, matrix and AT keyboards, printers, FDD drives, and USB devices allows using CPC109 in human operated systems.
An onboard flash drive, external IDE or USB drives can be used for data storage.
CPC109 module is capable to accomplish most of the input-output tasks for discrete and analog signals.
Besides, possibility to reprogram the onboard FPGA insystem provides extra flexibility in tailoring the module for different applications.
Along with standard MicroPC bus (8bit ISA) CPC109 is equipped with PC/104 ISA (8/16bit) connector allowing connection of additional expansion modules. Moreover, the module can operate in RS232, RS422/485, and Ethernet networks as part of a distributed system.
| CPC10901 |
CPC109 MicroPC CPU card, Vortex86DX 600MHz, 256MB DDR2 SDRAM, 1GB FFD, Discrete I/O: 48+24 lines, 2 x RS-232, 2 x RS-422/485 (Isolated); Analog I/O: 8AI, 2AO (Isolated). |
| CPC10902 |
CPC109 MicroPC CPU card, Vortex86DX 600MHz, 256MB DDR2 SDRAM, 1GB FFD, Discrete I/O: 48+24 lines, 2 x RS-232, 2 x RS-422/485 (Isolated) |
| CPC10903 |
CPC109 MicroPC CPU card, Vortex86DX 600MHz, 256MB DDR2 SDRAM, 1GB FFD, 2 x RS-232, 2 x RS-422/485 (Isolated) |
| CPC10902\COATED |
Controller module CPC109, Vortex86DX 600МHz, 256MB DDR2 SDRAM, 2Gb FFD, NV SRAM 128Kb, PC-104 ISA 16-bit, Ethernet 10/100 Mbps, 4 x USB 2.0, 2 x RS-232, 2 x RS-422/485 (isolated). Digital I/O: 48+24 channels, conformal coating |
| CPC10901\COATED |
Controller module CPC109, Vortex86DX 600МHz, 256MB DDR2 SDRAM, 2Gb FFD, NV SRAM 128Kb, PC-104 ISA 16-bit, Ethernet 10/100 Mbps, 4 x USB 2. 2 x RS-232, 2 x RS-422/485); Digital I/O: 48+24 channels, Analog I/O: 8AI, 2A, conformal coating |
| CPC10901\LNX |
Controller module CPC109, Vortex86DX 600МHz, 256MB DDR2 SDRAM, 2Gb FFD, NV SRAM 128Kb, PC-104 ISA 16-bit, Ethernet 10/100 Mbps, 4 x USB 2. 2 x RS-232, 2 x RS-422/485); Digital I/O: 48+24 channels, Analog I/O: 8AI, 2A, Linux |
| CPC10903\COATED |
Controller module CPC109, Vortex86DX 600МHz, 256MB DDR2 SDRAM, 2Gb FFD, Ethernet 10/100 Mbps, 4 x USB 2.0, 2 x RS-232, 2 x RS-422/485 (isolated), conformal coating |
