SMARC v.1.1 i.MX6 Quad Core 1 ARM Cortex-A9 Based CPU Module |
|

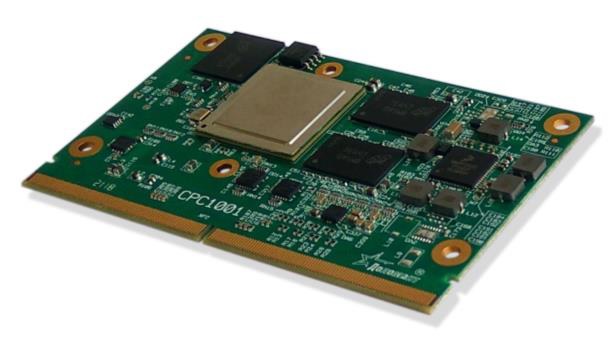

SMARC v.1.1 i.MX6 Quad Core 1 ARM Cortex-A9 Based CPU Module
CPC1001
- CPU i.MX6 Quad Core 1 ARM Cortex-A9
- RAM: 4 GB DDR3LP
- Video input 24-bit Parallel RGB LVCMOS, one/two 18/24-bit
- LVDS, MIPI DSI Lane, HDMI 1.4
- Flash-drive 32 GB eMMC, SDIO-interface
- SATA II interface
- Gigabit Ethernet interface
- Serial interfaces: 3×COM-ports, 3×I2C, 2×SPI
- Software compatibility: Linux, Android, QNX Neutrino
- MTBF: no less than 450 000 h
Overview
Downloads
Sales & technical support
Form-factor SMARC v1.1.
CPU Module CPC1001 is meant to be used as a high-performance compute core with a wide range of input/output interfaces when building realtime control systems for missioncritical applications with strict requirements to dimensions, power consumption and operating conditions.
CPU Module CPC1001 is meant to be used as a high-performance compute core with a wide range of input/output interfaces when building realtime control systems for missioncritical applications with strict requirements to dimensions, power consumption and operating conditions.
Datasheet
(PDF 0.23 MB)
