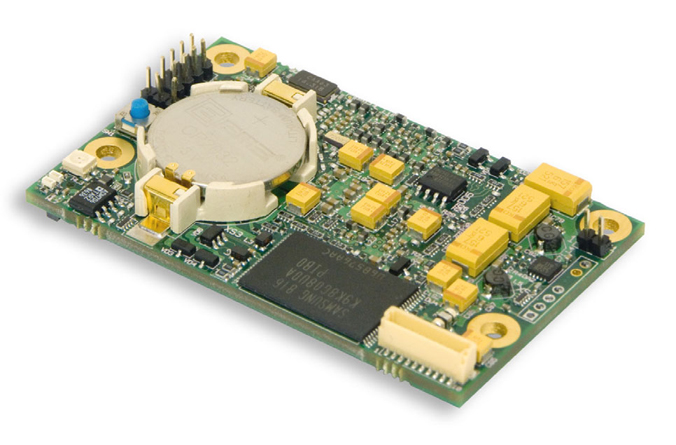

Fastwel CPB906 is a Computer Module designed for use as a computing core in application specific embedded systems.

Fastwel CPB906 is based on x86 code compatible CPU - Vortex86DX running at 600 MHz and addressing 256 MB DDR2 SDRAM.

CPB906 has just a 65×40 mm footprint (57% of credit card size). It is so far the smallest x86 Computer-on-Module, which is a perfect choice for space constrained applications.

All basic interfaces are routed to the highdensity 220-contact bottom-side connector for installation on a customized carrier board bearing standard interface connectors.

Fastwel custom design division offers development of application specific embedded systems based on CPB906 computer module.

Fastwel CPB906 supports DOS, Windows CE 5.0, Linux 2.6 and QNX 6.3 operating systems.
