3.5" 高性能的单板计算机 |
|
3.5" 高性能的单板计算机
CPB905
• AMD Geode LX 800 (500 MHz)
• 256 MB DDR SDRAM
• 256 MB Flash disk
• CompactFlash Type I/II socket
• USB 2.0 support, up to four devices connection
• Two Ethernet controllers
• HDD connection: up to two devices
• FBUS devices connection port
• Seven COM ports
• Low power consumption
• Shock/vibration: 50G/5G
• Operating temperature range: –40°C to +85°C
• 256 MB DDR SDRAM
• 256 MB Flash disk
• CompactFlash Type I/II socket
• USB 2.0 support, up to four devices connection
• Two Ethernet controllers
• HDD connection: up to two devices
• FBUS devices connection port
• Seven COM ports
• Low power consumption
• Shock/vibration: 50G/5G
• Operating temperature range: –40°C to +85°C
Overview
Downloads
Order Info
Sales & technical support

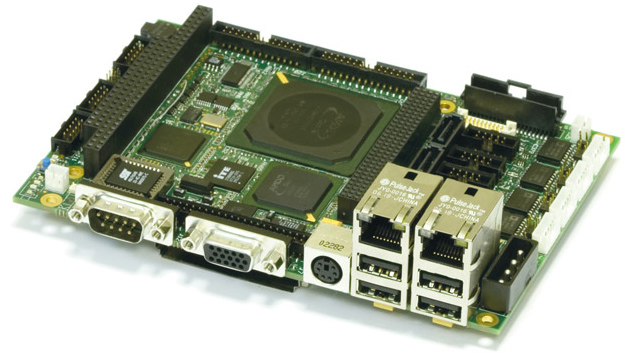

СPB905 is a 3,5" single board computer based on AMD LX800 (500 MHz) CPU with PC/104 support (32-bit PCI and 16-bit ISA).
All components, including CPU and memory are soldered onboard thus providing high vibration resistance up to 50G/5G.
CPB905 has a rich set of interfaces: 2 Fast Ethernet ports, 7 COM ports (4 optoisolated), 4 USB 2.0 ports, supports video output on monitors with CRT, TFT, LVDS interfaces with resolution up to 1920×1440 pixels.
Power consumption of СPB905 module is just 6W, which makes it a perfect solution for systems with passive cooling.
СPB905 operates in industrial temperature (-40...+85°С) and supports Linux, Windows XP Embedded/CE, QNX.
All components, including CPU and memory are soldered onboard thus providing high vibration resistance up to 50G/5G.
CPB905 has a rich set of interfaces: 2 Fast Ethernet ports, 7 COM ports (4 optoisolated), 4 USB 2.0 ports, supports video output on monitors with CRT, TFT, LVDS interfaces with resolution up to 1920×1440 pixels.
Power consumption of СPB905 module is just 6W, which makes it a perfect solution for systems with passive cooling.
СPB905 operates in industrial temperature (-40...+85°С) and supports Linux, Windows XP Embedded/CE, QNX.
Datasheet
(PDF 0.65 MB)
| CPB905-01 |
SBC 3.5" AMD Geode LX800, 500MHz, RAM256 MB, PCI, ISA, 2xEthernet, CRT, LVDS, 8 COM ports COM5-COM8 (RS232/485/422), -40..+85C |
